Test Editor Overview

View as Markdown

The Shiplight AI Test Editor is a powerful, AI-enhanced interface for creating, editing, and debugging automated tests. It provides both natural language and code-based test authoring capabilities with real-time execution and debugging features.

Table of Contents

1. Accessing the Test Editor
2. Editor Interface Overview
   • Header Section
   • Main Editor Area
3. Test Structure
   • Test Flow
   • Step Types
   • Teardown Section
4. Key Features
   • Natural Language & Code Modes
   • AI Mode vs Fast Mode
   • Recording
   • Test Information Panels
5. Editing Workflow
6. Status Management
   • Test Status Types
   • Status Transitions
7. Best Practices
   • Test Design
   • Performance Tips
   • Maintenance
8. Keyboard Shortcuts
9. Next Steps

Accessing the Test Editor

Navigate to the Test Editor through multiple entry points:

1. Automatic Redirect - Opens automatically after creating a new test
2. Tests Page - Click on any test from the main Tests page
3. Test Suites - Click on a test within a suite
4. Quick Access - Use the arrow (→) button wherever tests are listed
5. Direct URL - Navigate to /tests/{testId}

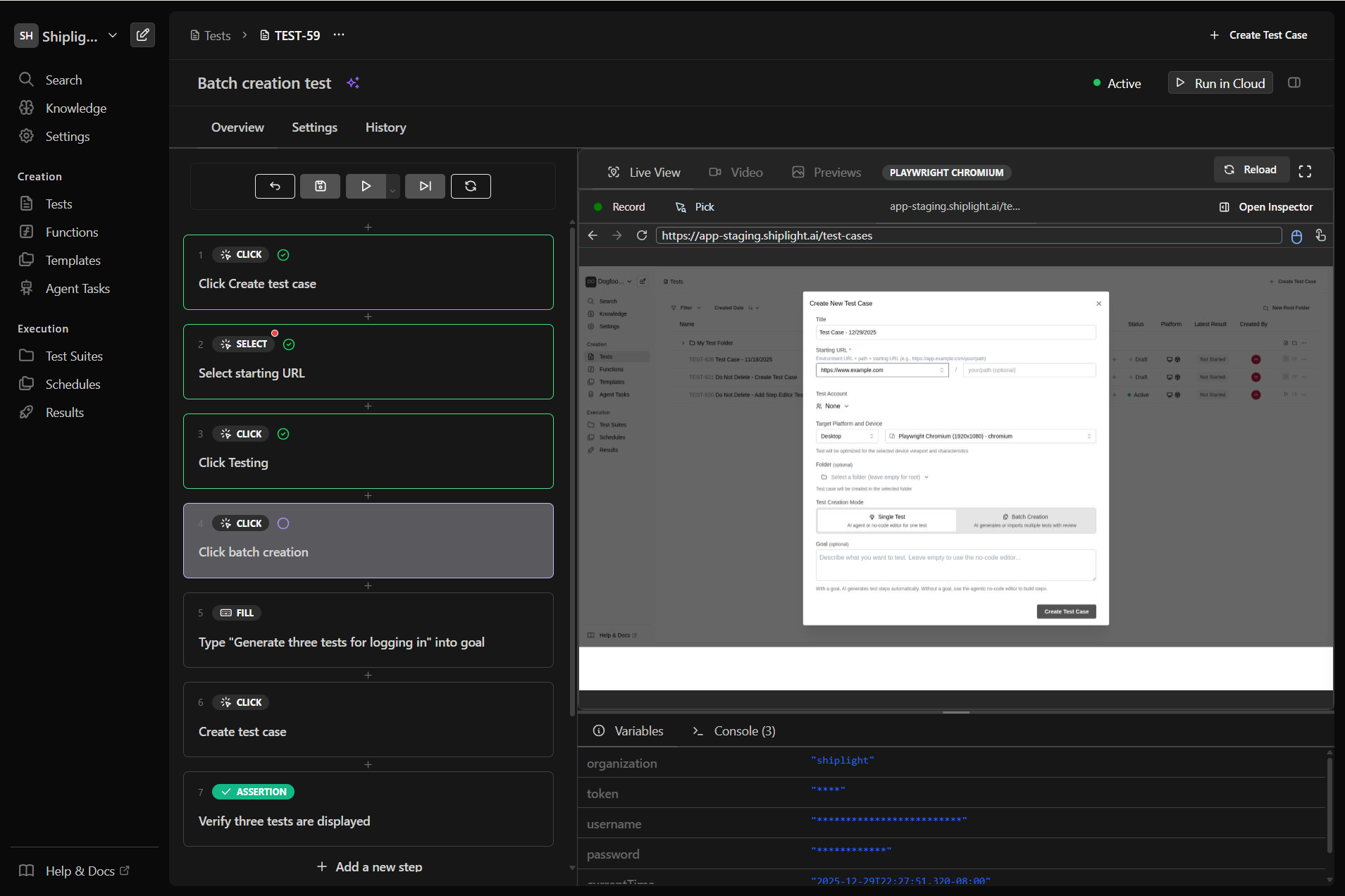

Editor Interface Overview

Header Section

The test editor header provides essential test information and controls:

• Test Name - Click to edit the test name inline
• Status Badge - Shows current test status:
  • Draft - In development, excluded from scheduled runs
  • Active - Enabled for automated execution
  • Generating - AI is creating test steps
• Environment Selector - Choose which environment to run the test in
• Actions Menu - Additional options (clone, delete, export)

Main Editor Area

The editor is divided into two resizable panels:

Left Panel - Test Flow Editor

• Visual representation of your test steps
• Drag-and-drop step reordering
• Inline editing capabilities
• AI mode toggle for natural language input
• Nested structure support (steps, conditions, loops)

Right Panel - Live View & Information

• Live Tab - Real-time browser view during debugging
• Preview Tab - Screenshots from test execution
• Console Tab - Execution logs and debug output
• Context Tab - Current test variables and state

Test Structure

Test Flow

A test flow contains:

• Main Statements - Your primary test logic
• Teardown Statements - Optional cleanup steps
• Metadata - Goal, URL, and completion status

Step Types

Each step in your test can be one of these types:

Action Step - A single operation (click, type, assert, etc.)

• Contains the actual action to perform
• The leaf node of your test structure

Group - A container for multiple steps

• Groups related steps together
• Can be collapsed/expanded for organization
• Contains nested statements

If/Else Step - Conditional branching

• Evaluates a condition
• Executes different paths based on result

Loop Step - Repeating operations

• While loop that continues based on condition
• Contains body statements to repeat

Teardown Section

Optional cleanup steps that run after the main test:

• Always executes (even on test failure)
• Useful for resetting state
• Contains the same step types as main flow
• Separate from main statements

Key Features

Natural Language & Code Modes

Natural Language Mode (AI-Powered)

• Write test steps in plain English
• AI automatically converts to executable actions
• Ideal for non-technical users
• Context-aware suggestions

Code Mode (JavaScript)

• Direct Playwright code editing
• Full access to browser APIs
• Custom logic implementation
• Advanced automation scenarios

AI Mode vs Fast Mode

Fast Mode (Non-AI)

• Uses cached actions for optimal performance
• Executes pre-generated Playwright commands
• Best for stable DOM elements and consistent UIs
• Faster execution speed
• Relies on fixed element selectors/locators
• Less flexible but more performant

AI Mode (Dynamic Mode)

• Evaluates descriptions in real-time against current browser state
• Dynamically determines the best action and element to target
• Handles dynamic element IDs and changing locators
• More flexible and adaptive to UI changes
• Slower execution due to real-time analysis
• Ideal for modern web apps with dynamic content

Recording

Interactive Test Creation

• Record browser interactions in real-time
• Automatically captures clicks, typing, navigation, and form interactions
• Converts user actions into test steps automatically
• Available during debugging sessions via Live View toolbar

Benefits:

• Rapid test creation by performing actions naturally
• No need to write step descriptions manually
• Captures complex user workflows accurately
• Ideal for exploratory testing and reproducing bugs

Learn more about Recording

Test Information Panels

Goal Section

• Document the test's purpose
• Editable at any time
• Used by AI for context
• Helps team understand test intent

Labels

• Organize tests with custom tags
• Filter and search by labels
• Apply multiple labels per test
• Color-coded for quick identification

Latest Run Results

• Last execution status
• Execution time and date
• Link to full run details
• Video recording (if available)

Editing Workflow

1. Adding Steps

Click "Add a new step" button to insert steps:

• Choose from action type dropdown
• Enter description or code
• Configure step-specific options
• AI auto-suggests next steps

Insert Between Steps using the + button:

• Maintains test flow
• Automatically adjusts numbering
• Preserves nested structure

2. Modifying Steps

Click the ⋯ menu on any step to access four groups of options:

Actions - Convert to different action types:

• Action, Assertion, Code, Function, Upload File, Group

Control Flows - Convert to control structures:

• If/Else, Loop

Execution - Debug controls:

• Run until here

Edit Operations:

• Duplicate step
• Delete step

3. Organizing Steps

Drag and Drop to reorder:

• Visual indicators show valid drop zones
• Maintains parent-child relationships
• Updates references automatically

Group Related Steps:

• Create step containers
• Add descriptive group names
• Collapse/expand for clarity
• Nest multiple levels deep

Status Management

Test Status Types

Draft

• Development and testing phase
• Not included in scheduled runs
• Can still be run manually
• No notifications on failure

Active

• Production-ready test
• Included in test suites and schedules
• Triggers notifications on failure
• Monitored for reliability

Disabled

• Temporarily excluded from execution
• Preserves test configuration
• Quick re-enable when needed
• Useful for maintenance windows

Status Transitions

Toggle status using the dropdown in the header:

1. Create test → Starts as Draft
2. Complete development → Change to Active
3. Maintenance needed → Set to Disabled
4. Updates complete → Return to Active

Best Practices

Test Design

✅ DO:

• Keep tests focused on single features
• Use descriptive step descriptions
• Add assertions to verify outcomes
• Implement proper wait strategies
• Use teardown for cleanup

❌ DON'T:

• Create overly complex test flows
• Hard-code environment-specific values
• Skip error handling
• Ignore flaky test warnings
• Duplicate test logic

Performance Tips

• Minimize Waits - Use smart waits instead of fixed delays
• Batch Operations - Group related actions together
• Reuse Functions - Extract common patterns
• Optimize Selectors - Use stable, efficient selectors
• Parallel Execution - Design tests for independence

Maintenance

• Regular Reviews - Update tests with UI changes
• Monitor Flakiness - Address intermittent failures
• Version Control - Save checkpoints before major changes
• Documentation - Keep goals and descriptions current
• Refactoring - Simplify complex flows periodically

Keyboard Shortcuts

When a statement is selected, you can use these shortcuts:

Shortcut	Action
Ctrl + Alt + A	Convert to Action
Ctrl + Alt + T	Convert to Assertion
Ctrl + Alt + C	Convert to Code
Ctrl + Alt + F	Convert to Function
Ctrl + Alt + U	Convert to Upload File
Ctrl + Alt + E	Convert to Extract
Ctrl + Alt + L	Convert to Login
Ctrl + Alt + W	Convert to Wait Until
Ctrl + Alt + G	Convert to Group
Ctrl + Alt + R	Convert to Template
Ctrl/Cmd + D	Duplicate statement

Next Steps

• Configure Test Environments - Set up multiple configurations for different environments
• Learn about Actions & Steps - All available action types and how to use them
• Explore Recording - Interactive test creation
• Explore AI Features - AI-powered test creation and maintenance
• Master Debugging Tools - Interactive debugging and troubleshooting
• Discover Advanced Features - Variables, functions, and more
